Collection Issues
Use the Collection issues dashboard to identify Ops Insights-registered Exadata, host, and database targets that are not actively collecting data.
Collection Issues Dashboard
To access the Collection issues dashboard, open the navigation menu, click Observability & Management, and then click Ops Insights. Under Administration, click Collection issues.

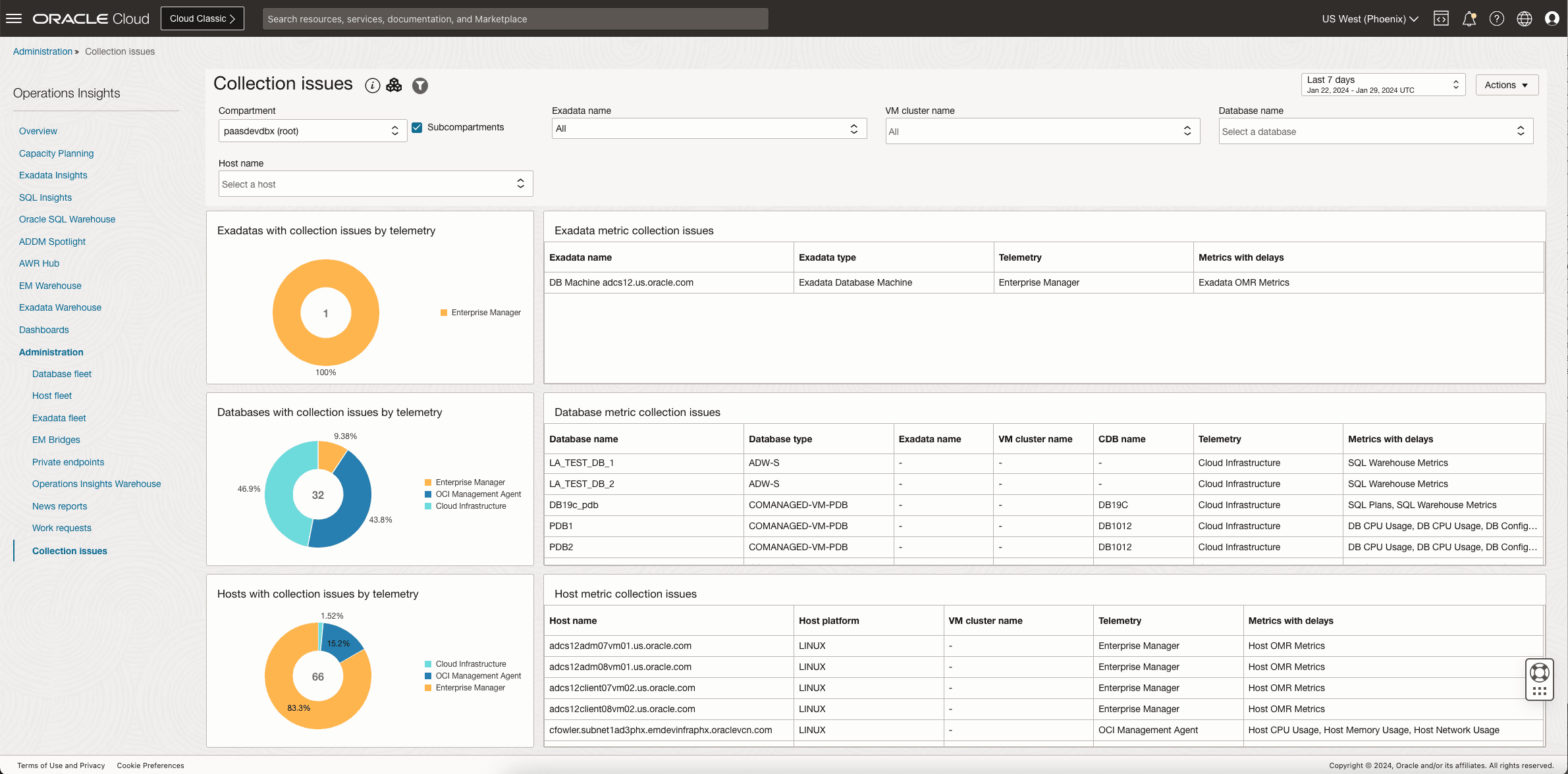

The Collection issues dashboard is organized by target type: Exadata, database, and host. The dashboard features three pie charts showing the number of resources by their telemetry type, the percentage shown is in the pie chart represents the percentage of that telemetry type having issues. For example: if you have 100 total targets (50 Enterprise Manager targets, 50 OCI Management Agents) and 2 Enterprise Manager targets have collection issues and 1 OCI Management Agent, the number of targets with issues is 3. The percentages would be 66% for Enterprise Manager and 33% OCI Management Agents.
Each of the three sections also has a table with specific details about the targets experiencing collection issues, allowing you to see additional fields for each target type. You can review the specific metrics that are experiencing issues using the Metrics with Delays field within each of the three tables.
You can use the filters at the top of the dashboard to filter targets by compartment, Exadata system, VM cluster, database, or host.
Collection Issues Widgets

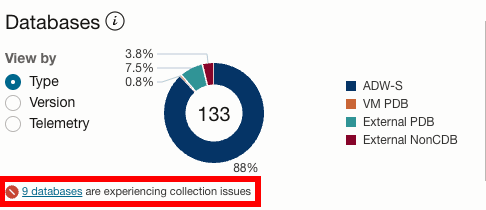

Ops Insights also displays collection issues widgets in Database Capacity Planning, Host Capacity Planning, and Exadata Insights when targets have collection issues. Click a collection issues widget to open the Collection issues dashboard.
